Description

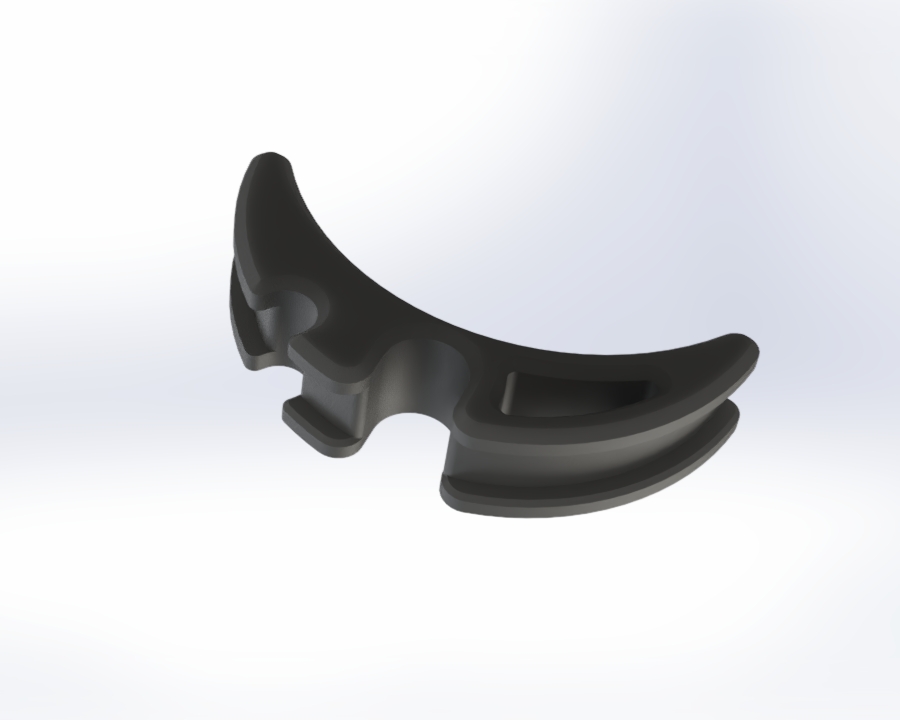

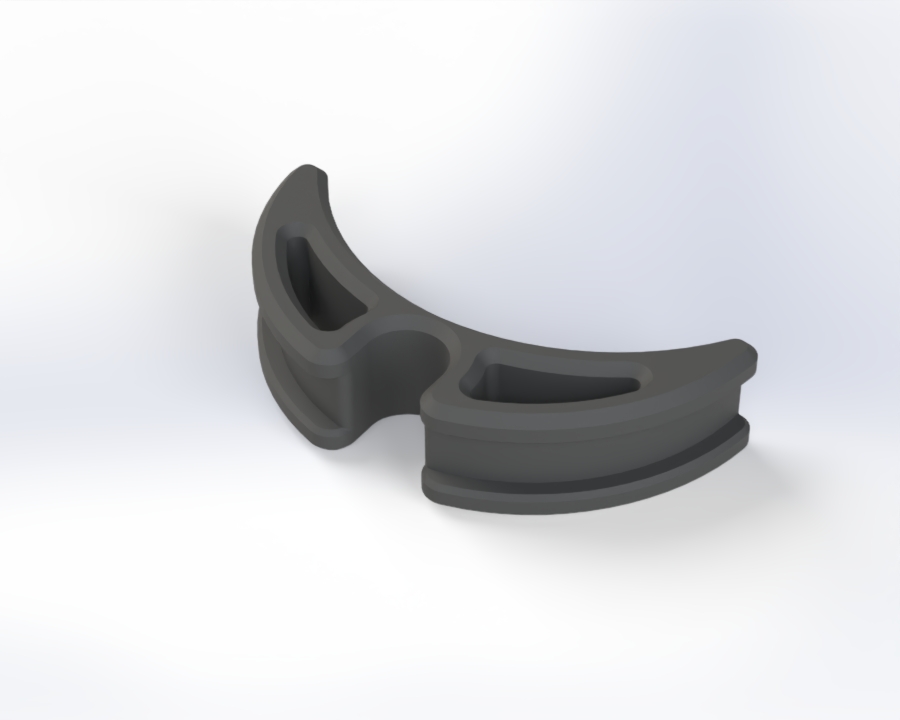

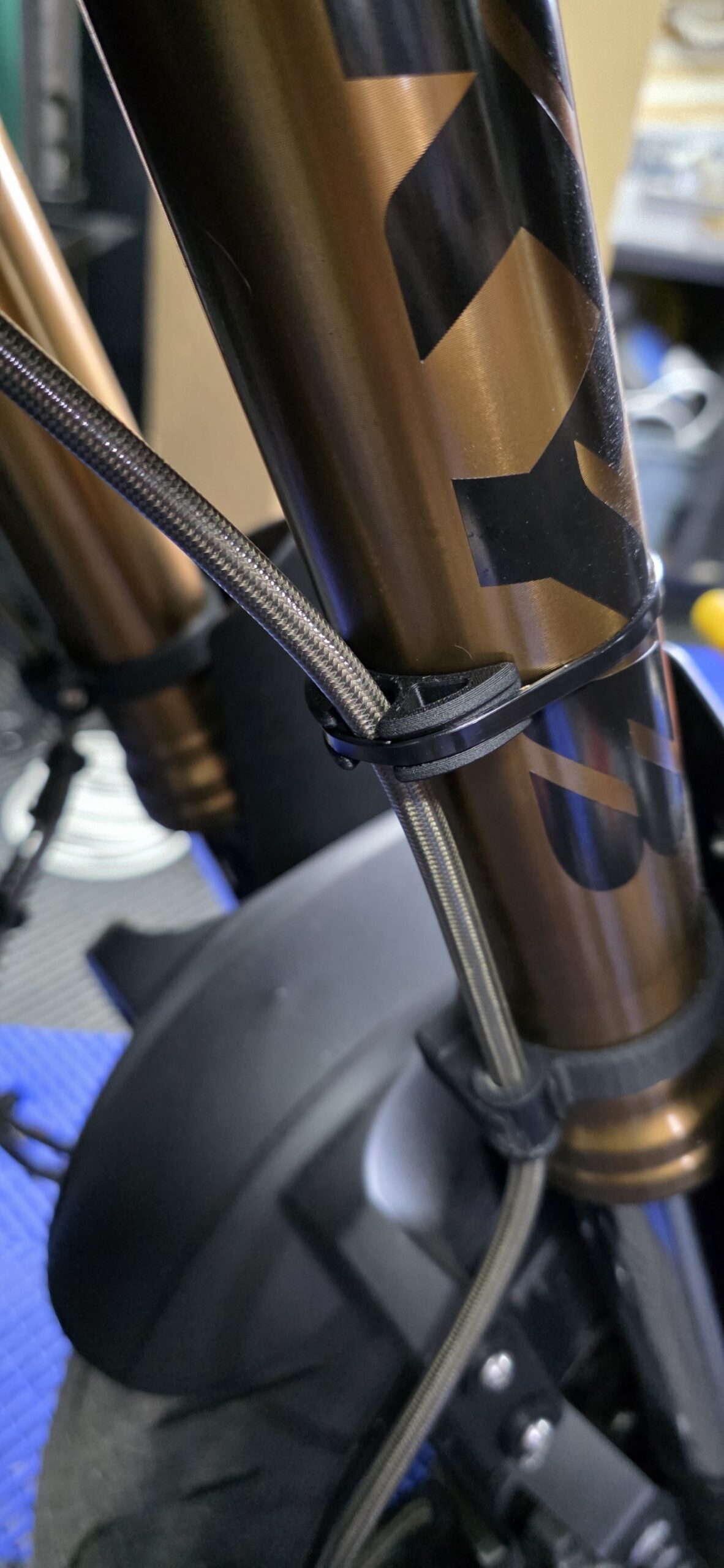

The Racetorx Braided line brackets are a 3D printed bracket in our design style to hold a standard brake line on the forks with a cable tie. This is a very simple item for keeping the lines fixed in a guide for a clean look.

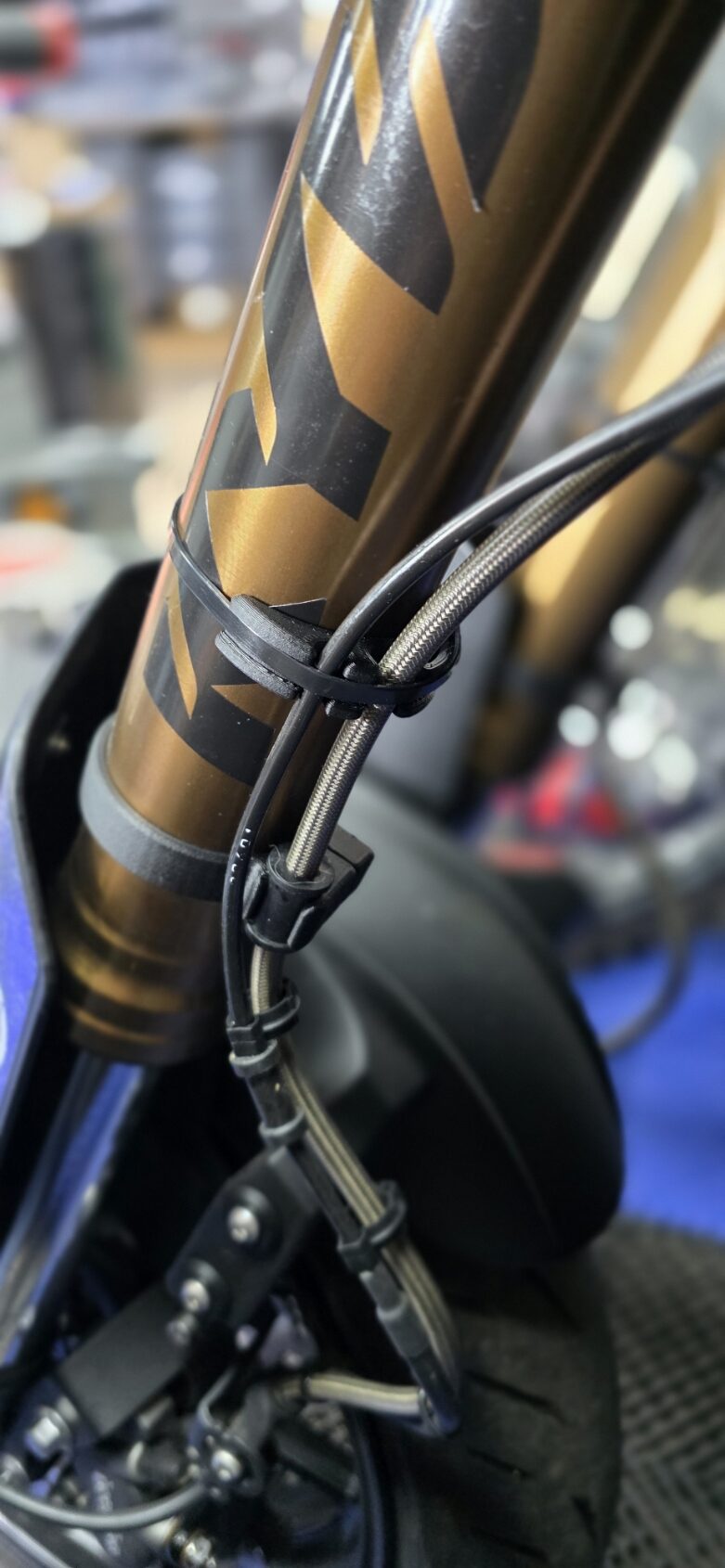

There are so far 2 designs, a brake line guide only and a brake line guide and abs sensor guide at various fork sizes.
Material- Carbon fibre infused plastic.
Includes-
- Bracket x1
- Cable tie x1
For other versions please email us with fork OD or other mounting locations. also 45degree cut style if required too.
These are some very common outer fork diameters used by major manufacturers — especially for USD (upside-down) forks:
| Outer Diameter | Typical Use Cases |
|---|---|
| 50mm | Mid-size sportbikes, often upper clamp diameter |
| 52mm | Common on modern sportbikes (e.g., Yamaha R6, Honda CBR600RR) |
| 53mm | Also frequent, especially Showa forks |
| 54mm | Very common on liter-class superbikes (e.g., Ducati Panigale, Aprilia RSV4) |
| 55mm | Often the lower clamp on big forks (e.g., Öhlins, WP, Sachs) |
| 56mm–58mm | Seen on high-end race bikes or special edition Öhlins/Marzocchi forks |
